Model Double Wall Premium Alembic Classic | 500L Net |
Furnace material | Inox / Aisi 430 |
Furnace isolation | EDPM – Thermopolimer |
Furnace working temperature ( temperature of water ) | ~ 110 °C |
Furnace working pressure ( safety valve pressure ) | 0,5 Bar |
Optional – Gas heating | 50 kW/h |
Optional – Electric heating | 36 kW/h |
Material of still ( boiler ) – electrolytic copper | Cu DHP |
Upper part of still – electrolytic copper | Cu DHP |
Cooling system – flowing | Inox / Aisi 304 |

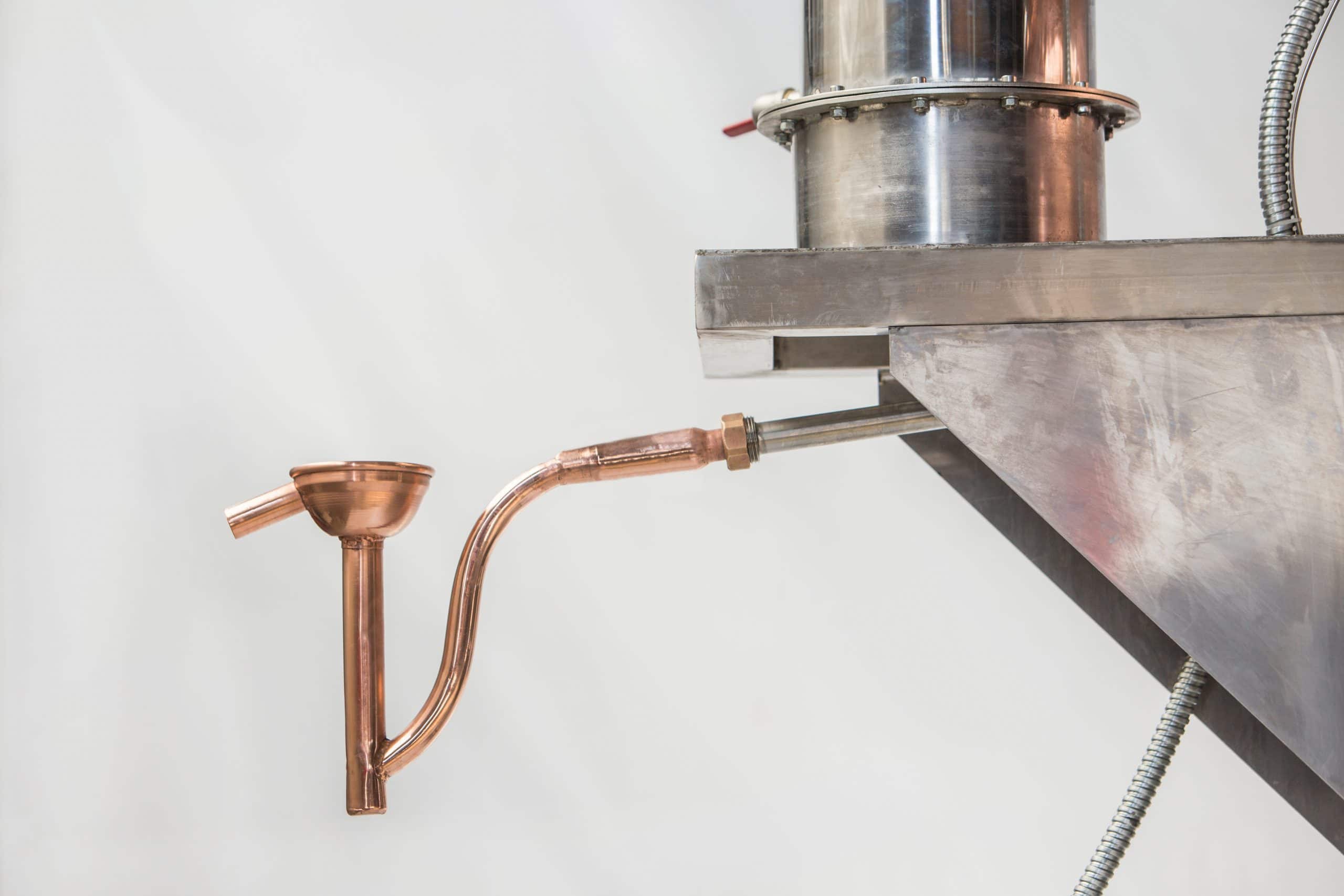

Parrot (alcoholmeter holder) | Inox / Aisi 304 |
Electric mixer with reducer 90 RPM *vertical | 0,37 kW |
CIP system for automatic cleaning included | 3 unites |
Average time of 1 cycle | ≈ 5-6 h |
Average energy consumption for one distillation cycle | 150-200 kW |
Manufacturers warranty | 3 years |
Distilleerketel PREMIUM DWPA 500 L
Prijs op aanvraag
Product from the PREMIUM series, designed for medium and large quantities of distillate.
WBC- Water bath classic. The still is made for maximum stability and efficiency !
Pure electrolytic copper, 99.99 % !
CIP System for automatic cleaning-easy maintenance !
Automatic mixer system-electric motor, reducer and timer!
The PREMIUM WBC still has a net capacity of 500 L, made from 99.99 % pure electrolytic copper. The furnace and water bath is made from stainless steel designed for solid fuel heating, with an operating pressure 0.5 Bar and temperature of 104-120 °C. In order to insure energy efficiency, the furnace has a firebrick insulation. An optional gas heating system or electric system with ED-PM-termopolimer insulation is available. The cooler has a constant water flow system for maximum efficiency made from acid-water resistant stainless steel and functions according to industrial standards.
